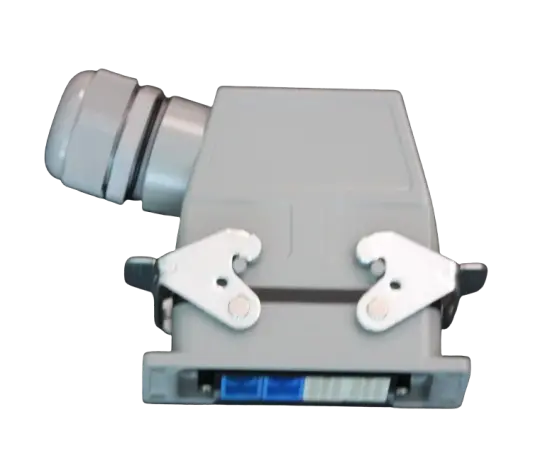

Esinti Modular Connector
The

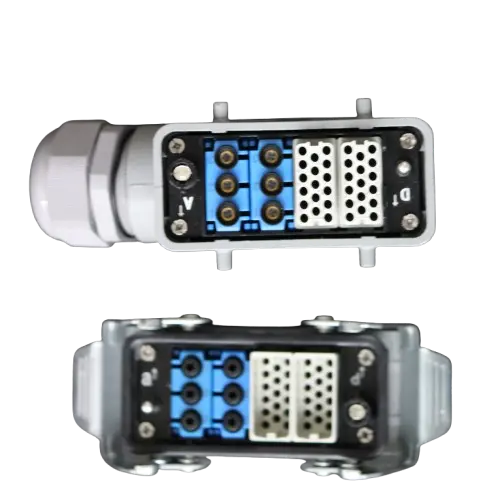

Modular Heavy Duty Connector is a flexible and robust industrial connector system designed to transmit
power, signal, and data within a single connector housing. Its modular design allows different insert types—such as
power modules, signal modules, and control modules—to be combined according to application requirements. Engineered for harsh industrial environments, this connector ensures
secure locking, high electrical reliability, and long service life.
| Brand: ESINTI |
| Color: Grey |
Technical Specifications
| Parameter | Specification |
| Product Type | Modular Heavy Duty Connector |
| Connector Design | Rectangular Modular Insert |
| Module Type | Power + Signal |
| Rated Voltage | Up to 500–1000 V |
| Rated Current | Up to 10–40 A |
| Contact Material | Copper Alloy |
| Contact Plating | Silver / Gold Plated |
| Insulation Material | High-grade Thermoplastic |
| Housing Material | Die-cast Aluminum / Industrial Plastic |
| Locking System | Lever Lock |
| Mounting Type | Panel Mount / Cable Mount |
| Termination Type | Screw / Crimp |
| Operating Temperature | –40°C to +125°C |
| Protection Class | IP65 / IP67 (with hood & housing) |
| Vibration Resistance | High |
| Standards | IEC / EN Industrial Connector Standards |
Key Features
- Modular design for flexible electrical configuration
- Supports power and signal transmission in a single connector
- High current and voltage handling capability
- Secure lever locking system for stable connections
- Rugged housing for harsh industrial environments
- Resistant to dust, moisture, vibration, and oil
- Easy installation and maintenance
- Long service life with consistent performance
Applications
- Industrial automation and control panels
- Printing and packaging machinery
- CNC machines and robotics
- Power distribution systems
- Conveyor and material handling systems
- UV curing and industrial processing equipment
- Manufacturing and factory automation
