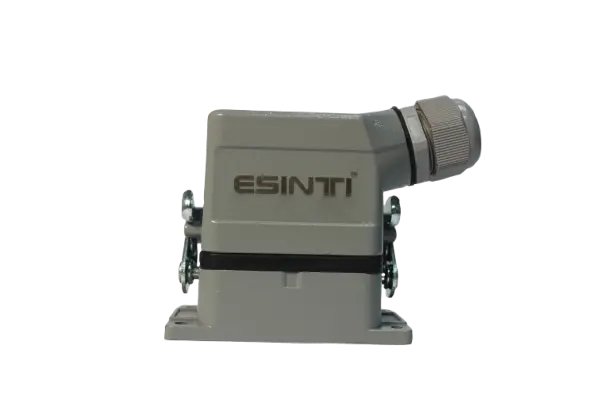

Esinti Heavy Duty Electrical Wire Connector Open Bottom

https://www.myelectrokart.com/web/image/product.template/45/image_1920?unique=c8111f1
(0 review)

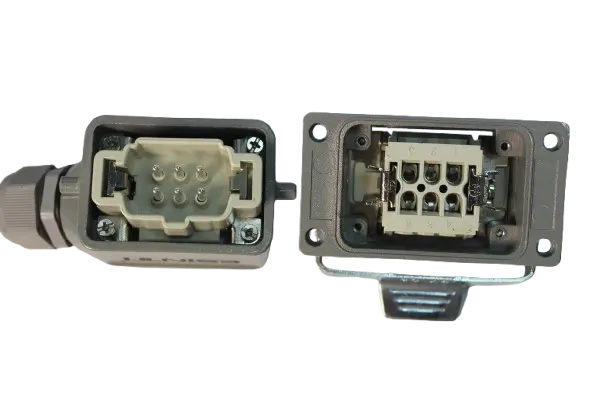

The Esinti Heavy Duty Electrical Wire Connector – Open Bottom is engineered for demanding industrial applications, offering high performance and secure electrical connections. Its open-bottom design ensures easy cable entry and flexible wiring, making it ideal for panel mounting or installations requiring downward cable routing. Built with robust materials to withstand moisture, dust, vibration, and mechanical stress, this connector ensures long-term reliability in harsh environments. Suitable for power, control, and signal connections in machinery, automation systems, and electrical panels.

₹ 961.38 961.38 INR ₹ 981.00

Not Available For Sale

  • No of pins
  • Brand
  • Color

This combination does not exist.

Contact Us
Brand: ESINTI
Color: Grey


Share

Technical Specifications

Parameter16-Pin Connector24-Pin Connector
Number of Pins16 + PE (Protective Earth)24 (configurable as 2x12  rows)
Rated Current16 A16 A
Rated Voltage500 V AC250V–1000V (300V–600V typical)
Rated Impulse Voltage6 KVUp to 600 V
Pin MaterialCopper (Silver/Gold Plated)Copper Alloy (Gold/Tin Plated)
Contact Resistance≤ 1 mΩ<10 mΩ
Wiring FormScrew ConnectionCrimp or Solder
Wire Specification0.5–4.0 mm² 0.5 mm² to 2.5 mm²
Tightening Torque0.5 N·m0.5 – 0.6 Nm
Mating Cycles≥ 500500–1000
Operating Temperature-40°C to +125°C-40°C to +125°C
Shell MaterialDie-Cast Aluminum AlloyNylon, Zinc Alloy, or Thermoplastic
Protection Grade (IP)IP65 (Dust-tight, water-resistant)IP67/IP68 (Dust/waterproof)
Sealing ElementNBR (Nitrile Rubber)Silicone Rubber Gasket
Locking MechanismMetal Roller, Double BuckleTwist Lock, Bayonet, or Threaded Coupling
Salt Spray Resistance48 hours48 hours
Humidity Resistance90% RH at 40°C90% RH at 40°C
Mounting StylePanel Mount/Inline/Cable-to-CablePanel Mount/Inline/Cable-to-Cable
