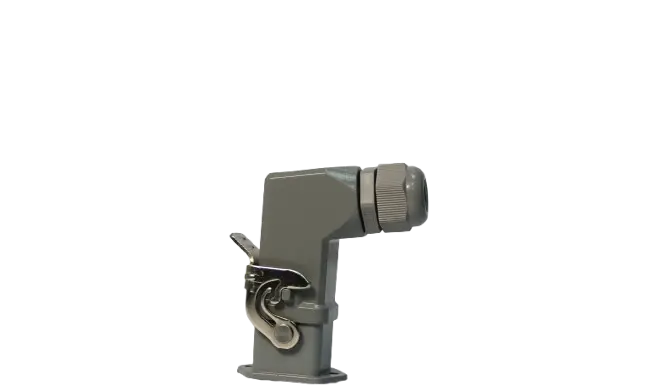

Esinti Heavy Duty Electrical Wire Connector Bottom Close
Esinti Heavy Duty Electrical Wire Connector with Bottom Close design ensures secure and sealed connections in industrial environments. Built for durability, it protects against moisture, dust, and mechanical stress. Ideal for power systems, control panels, and automation equipment.
| Brand: ESINTI |
| Color: Grey |
Technical Specifications
| Parameter | 16-Pin Connector | 24-Pin Connector |
|---|---|---|
| Number of Pins | 16 + PE (Protective Earth) | 24 (configurable as 2x12 rows) |
| Rated Current | 16 A | 16 A |
| Rated Voltage | 500 V AC | 250V–1000V (300V–600V typical) |
| Rated Impulse Voltage | 6 KV | Up to 600 V |
| Pin Material | Copper (Silver/Gold Plated) | Copper Alloy (Gold/Tin Plated) |
| Contact Resistance | ≤ 1 mΩ | <10 mΩ |
| Wiring Form | Screw Connection | Crimp or Solder |
| Wire Specification | 0.5–4.0 mm² | 0.5 mm² to 2.5 mm² |
| Tightening Torque | 0.5 N·m | 0.5 – 0.6 Nm |
| Mating Cycles | ≥ 500 | 500–1000 |
| Operating Temperature | -40°C to +125°C | -40°C to +125°C |
| Shell Material | Die-Cast Aluminum Alloy | Nylon, Zinc Alloy, or Thermoplastic |
| Protection Grade (IP) | IP65 (Dust-tight, water-resistant) | IP67/IP68 (Dust/waterproof) |
| Sealing Element | NBR (Nitrile Rubber) | Silicone Rubber Gasket |
| Locking Mechanism | Metal Roller, Double Buckle | Twist Lock, Bayonet, or Threaded Coupling |
| Salt Spray Resistance | 48 hours | 48 hours |
| Humidity Resistance | 90% RH at 40°C | 90% RH at 40°C |
| Mounting Style | Panel Mount/Inline/Cable-to-Cable | Panel Mount/Inline/Cable-to-Cable |
