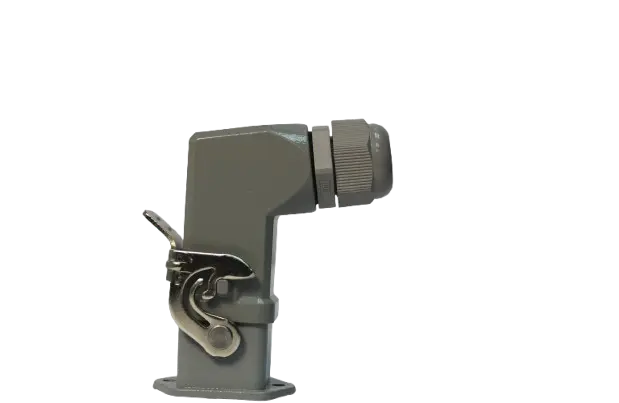

Esinti Heavy-Duty Connector Bottom Close
Esinti Heavy Duty Connectors with closed bottom design are ideal for HOODS heavy duty industrial connection, waterproof electrical connectors, and power connectors. Built for durability, they function as reliable wire terminals, multipin connectors, and cable connectors in demanding environments. Perfect for industrial automation, marine applications, and renewable energy systems, they deliver secure, high-performance connectivity.
| Brand: ESINTI |
| Color: Grey |
Technical Specifications
| Parameter | 16-Pin Connector | 24-Pin Connector |
|---|---|---|
| Number of Pins | 16 + PE (Protective Earth) | 24 (configurable as 2x12 rows) |
| Rated Current | 16 A | 16 A |
| Rated Voltage | 500 V AC | 250V–1000V (300V–600V typical) |
| Rated Impulse Voltage | 6 KV | Up to 600 V |
| Pin Material | Copper (Silver/Gold Plated) | Copper Alloy (Gold/Tin Plated) |
| Contact Resistance | ≤ 1 mΩ | <10 mΩ |
| Wiring Form | Screw Connection | Crimp or Solder |
| Wire Specification | 0.5–4.0 mm² | 0.5 mm² to 2.5 mm² |
| Tightening Torque | 0.5 N·m | 0.5 – 0.6 Nm |
| Mating Cycles | ≥ 500 | 500–1000 |
| Operating Temperature | -40°C to +125°C | -40°C to +125°C |
| Shell Material | Die-Cast Aluminum Alloy | Nylon, Zinc Alloy, or Thermoplastic |
| Protection Grade (IP) | IP65 (Dust-tight, water-resistant) | IP67/IP68 (Dust/waterproof) |
| Sealing Element | NBR (Nitrile Rubber) | Silicone Rubber Gasket |
| Locking Mechanism | Metal Roller, Double Buckle | Twist Lock, Bayonet, or Threaded Coupling |
| Salt Spray Resistance | 48 hours | 48 hours |
| Humidity Resistance | 90% RH at 40°C | 90% RH at 40°C |
| Mounting Style | Panel Mount/Inline/Cable-to-Cable | Panel Mount/Inline/Cable-to-Cable |
