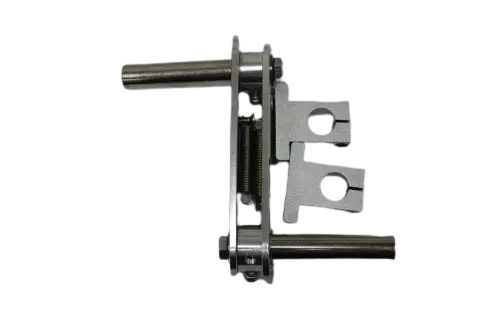

Encoder Bracket
The ESINTI Encoder Bracket Assembly is a high-precision mounting solution for rotary encoders, rollers, and shafts in printing machines, anilox coaters, packaging equipment, and industrial automation systems. Made from stainless steel and aluminum, it features a spring-loaded design for automatic tension adjustment and clamp-style blocks for easy installation. Its precision-machined main frame and shafts ensure smooth operation, stable alignment, and accurate speed feedback. Ideal for industrial roller and shaft setups, this encoder bracket assembly enhances machine performance, coating consistency, and overall efficiency.
| Brand: ESINTI |
Encoder Bracket Assembly – Technical Specifications
| Parameter | Specification |
| Material | Stainless Steel / Aluminum |
| Main Frame | Two parallel side plates with precision-machined holes for mounting rods/shafts |
| Shafts / Rods | Two cylindrical shafts across side plates for holding rollers or rotating parts |
| Clamp Blocks | Aluminum blocks with circular cutouts and clamping screws for secure shaft/roller mounting |
| Springs | Tension springs for adjustable force and automatic return tension |
| Encoder Type | Rotary |
| Usage | Industrial applications |
| Applications | Printing machines (Flexo, Gravure, Offset, Anilox coaters), Packaging & converting machinery, Industrial roller/shaft mounting |
| Surface Finish | Polished / Powder-coated (corrosion-resistant) |
| Operating Temperature | -20°C to +80°C |
| Key Features | Spring-loaded design, easy clamp installation, precision-machined, corrosion-resistant |
