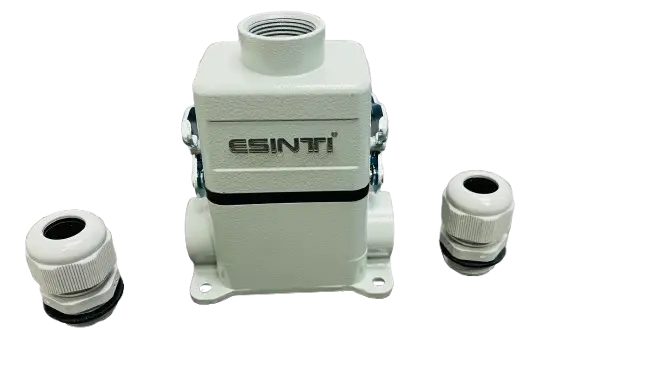

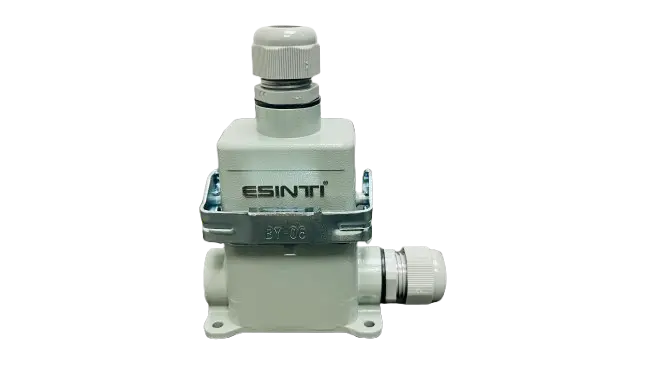

Esinti 6-Pin Heavy Duty Connector – Bottom Close, Top Entry
The Esinti 6 - Pin Heavy Duty Connector is designed for reliable power and signal transmission in harsh industrial environments. Featuring a top-entry hood and a durable aluminum housing, it ensures secure, vibration-resistant connections for machinery, automation panels, packaging machines, and CNC systems. Built for long life and stable performance in demanding conditions.
| Brand: ESINTI |
| No of pins: 6 |
| Color: Grey |
Technical Specification
| Parameter | Specification |
| Product Type | Heavy-Duty Rectangular Connector – Surface/Panel Mount Housing |
| Number of Contacts | 6 Pin (Insert required: 6-pin male/female) |
| Current Rating | 16 A (typical industrial rating) |
| Voltage Rating | 500 V AC (max) |
| Housing Material | Die-cast Aluminum Alloy, Powder-Coated |
| Ingress Protection (IP Rating) | IP65–IP67 (when fully mated with hood + gasket) |
| Cable Entry Type | Top Entry (for glands or conduit) |
| Thread / Entry Size | M20 (standard for cable glands – as shown in image) |
| Compatible Cable Glands | M20 Nylon/Metal Glands (6–12 mm cable OD supported) |
| Locking Mechanism | Dual Stainless Steel Lever Locks |
| Mounting Type | Surface / Panel Mount with 2 fixing holes |
| Operating Temperature | −40°C to +125°C |
| Contact Termination Type | Screw Terminal / Crimp (depends on insert used) |
| Insulation Resistance | ≥ 10⁴ MΩ |
| Dielectric Strength | ≥ 2.5 kV AC |
| Mechanical Durability | ≥ 500 mating cycles |
| Flammability Rating | UL 94 V-0 (typically for inserts) |
| Application | Industrial machinery, automation, conveyors, power distribution, control panels |
