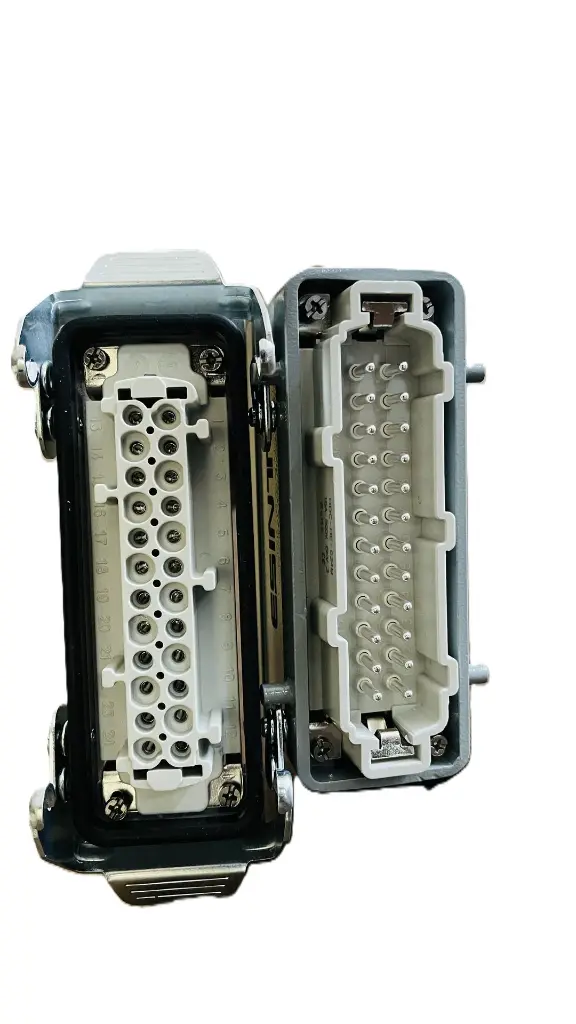

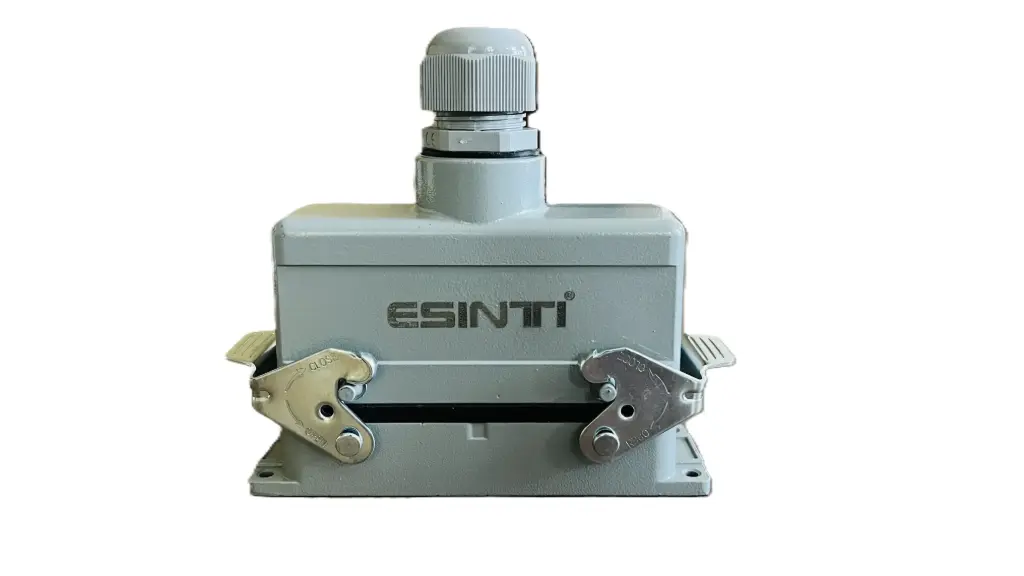

Esinti 24-Pin Heavy Duty Connector – Bottom Open, Top Entry
The 24 Pin Heavy Duty Connector Bottom Open Top Mount 24-02 is a reliable and high-performance industrial connector designed for demanding electrical and automation applications. Engineered for durability and efficiency, this connector provides secure multi-pin connections for complex machinery and control panels.

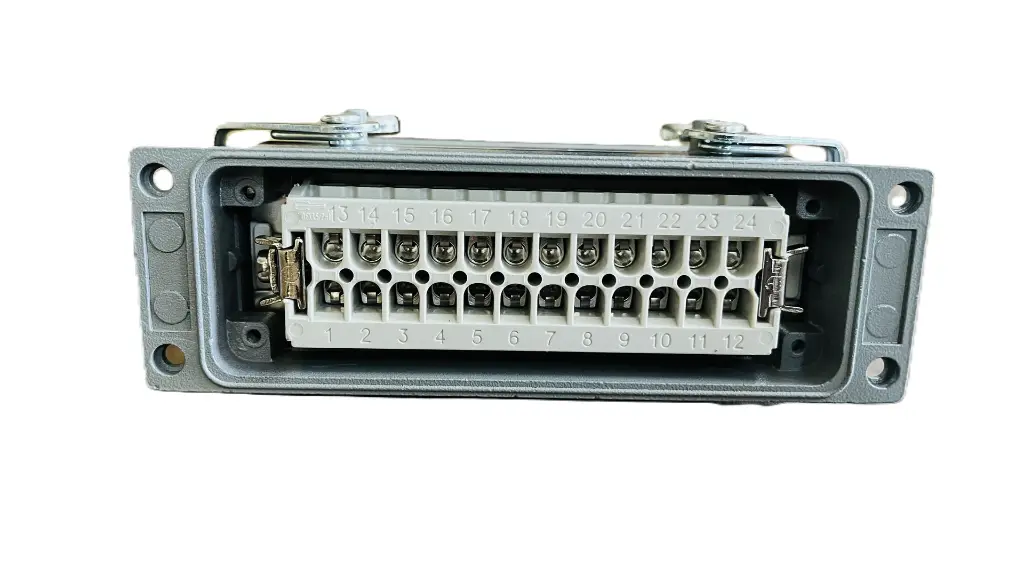

Featuring a bottom open cable entry, it allows neat and efficient cable routing, making it ideal for structured wiring systems. The top mount housing design ensures easy installation on panels, machines, and enclosures, saving time during setup and maintenance.
Built using premium-grade insulating material and robust metal locking clips, this heavy duty connector ensures long-lasting performance even in harsh industrial environments. Its strong locking system prevents accidental disconnection due to vibration, making it perfect for continuous operation machinery.
This connector is widely used in industrial automation, power distribution, control panels, machinery connections, and electrical equipment, ensuring safe and stable electrical connectivity.
| Brand: ESINTI |
| No of pins: 24 |
| Color: Grey |
Technical Specifications – 24 Pin Heavy Duty Connector (ES-24-02)
| Parameter | Specification |
| Number of Pins | 24 Pin |
| Model | ES-24-02 |
| Mounting Type | Top Mount |
| Cable Entry | Bottom Open |

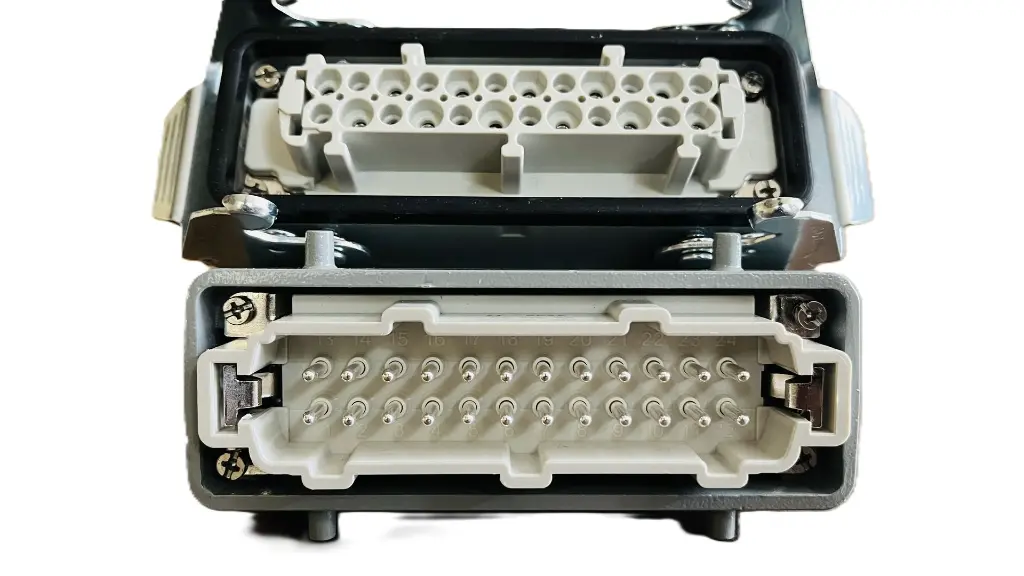

| Contact Type | Male & Female |
| Rated Voltage | 500 V |
| Rated Current | 16 A |
| Insulation Material | Thermoplastic (High Grade) |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver Plated Contacts |
| Locking Mechanism | Metal Locking Clip |
| Protection Level | IP65 (with proper enclosure) |
| Operating Temperature | -40°C to +125°C |
| Application | Industrial & Electrical Use |
| Installation Type | Panel / Machine Mount |
