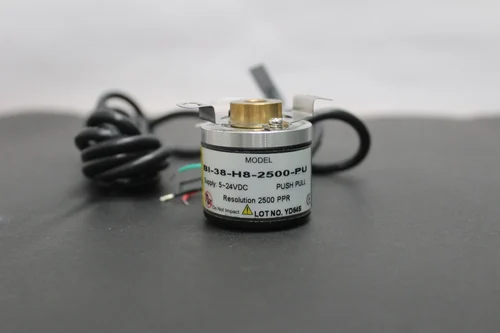

Shaft Encoder
The BI-38-H8-2500-PU Shaft Encoder is a compact 38 mm incremental rotary encoder with an 8 mm shaft and 2500 PPR resolution. Designed for CNC machines, robotics, conveyors, and printing equipment, it provides accurate speed and position feedback with a push-pull (HTL) output. Operating on 5–24V DC, this industrial-grade encoder ensures stable, noise-resistant, and reliable performance for automation and motion control systems.
| Brand: ESINTI |
| Model No: BI-38-H8-2500-PU |
Explore Our Product
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Shaft Encoder BI-38-H8-2500-PU |
| Encoder Type | Incremental Rotary Encoder |
| Body Diameter | 38 mm (Compact Design) |
| Shaft Diameter | 8 mm |
| Resolution | 2500 PPR (Pulses per Revolution) |
| Output Type | Push-Pull (HTL) |
| Operating Voltage | 5–24V DC |
| Application Areas | CNC Machinery, Robotics, Automated Conveyors, Printing Machines, Motion Control Systems |
| Key Features | High Accuracy, Noise-Resistant Output, Rugged & Reliable Design, Easy Installation |
Product-Specific FAQs
In this section, you can address common questions efficiently.
It uses Push-Pull (HTL) output, offering stable signals with noise resistance.
Yes, it’s designed for CNC machinery, robotics, and automation systems.
It has a 2500 PPR resolution, ensuring high accuracy in speed and position feedback.
The encoder has an 8 mm shaft diameter with a 38 mm body.
