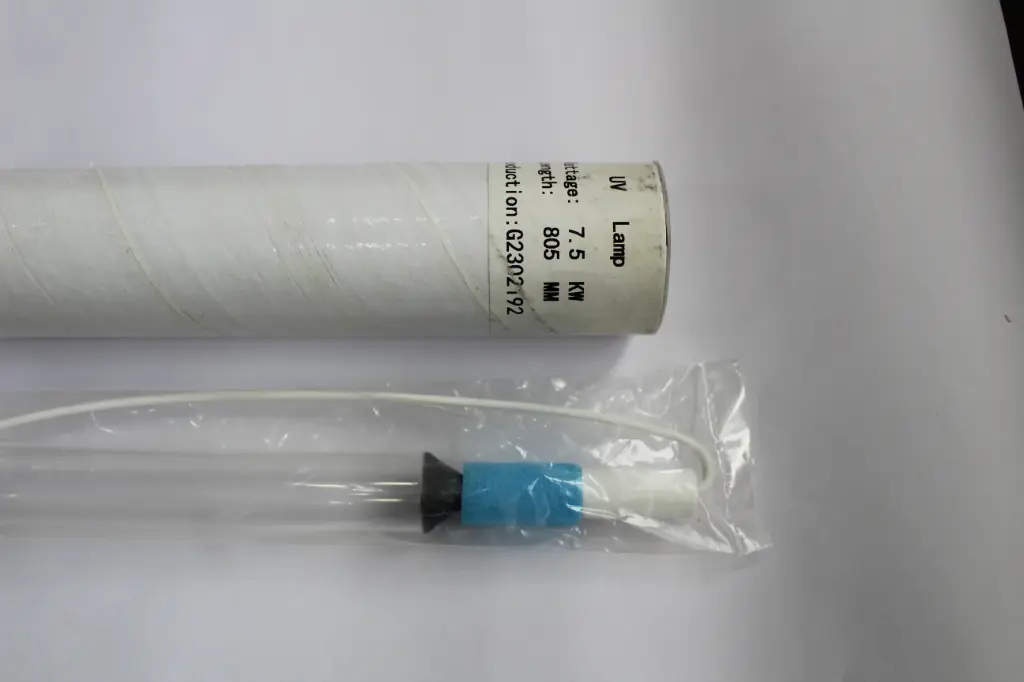

UV Lamp Specification
| Size | Total Length (mm) | Arc Length (mm) | Diameter (mm) | End Fitting Style | Terminal Type | Cable Length (Left mm) | Cable Length (Right mm) | Voltage | Current (A) | Power (KW) |
|---|---|---|---|---|---|---|---|---|---|---|
| 25"/300 | 805 | 635 | 25 | B | Pin Type | 285 | 285 | 900 | 8.8 | 7.5 |
| 28"/300 | 812 | 711 | 25 | B | Pin Type | 285 | 285 | 1000 | 8.4 | 8.4 |
| 30"/300 | 914 | 762 | 25 | B | Pin Type | 285 | 285 | 1000 | 9.8 | 9 |
| 36"/300 | 1016 | 914 | 25 | B | Pin Type | 285 | 285 | 1200 | 9 | 10.8 |
| 40"/400 | 1168 | 1016 | 25 | B | Pin Type | 285 | 285 | 1500 | 10.6 | 16 |
Our Specialities
1
- Made from best Quartz from USA: GE 214 A
- Mercury sourced from Mexico
- Sealing ribbon imported from Austria
2
- German Electrodes
- Make Albatross
- 1000 hours warranty
- Silicon wire with sleeve
3
- Intensity of our lamp: 180 mJ/cm² – 2200 mJ/cm² on aluminium reflector at a speed of 10 m/min
Key Features
- Fast curing for inks, coatings, and adhesives
- Cold curing with high adhesion & smudge-free finish
- Suitable for Offset, Flexographic, Gravure, Digital, Screen & Packaging printing
- Consistent performance for high-speed printing lines
- Long service life with 1000-hour warranty
Applications
- Premium Brochures & Magazines
- Luxury Packaging & Decorative Prints
- Drip-Off & Special Coating Effects
- Commercial Printing & Industrial Packaging
Product-Specific FAQs
In this section, you can address common questions efficiently.
Each lamp is designed for 1000+ hours of use under standard conditions.
Yes, it is suitable for both inks and adhesives across multiple printing technologies.
They are widely used in printing, packaging, publishing, and decorative finishing.
At 10 m/min, intensity ranges 180 mJ/cm² – 2200 mJ/cm² on aluminium reflector.
