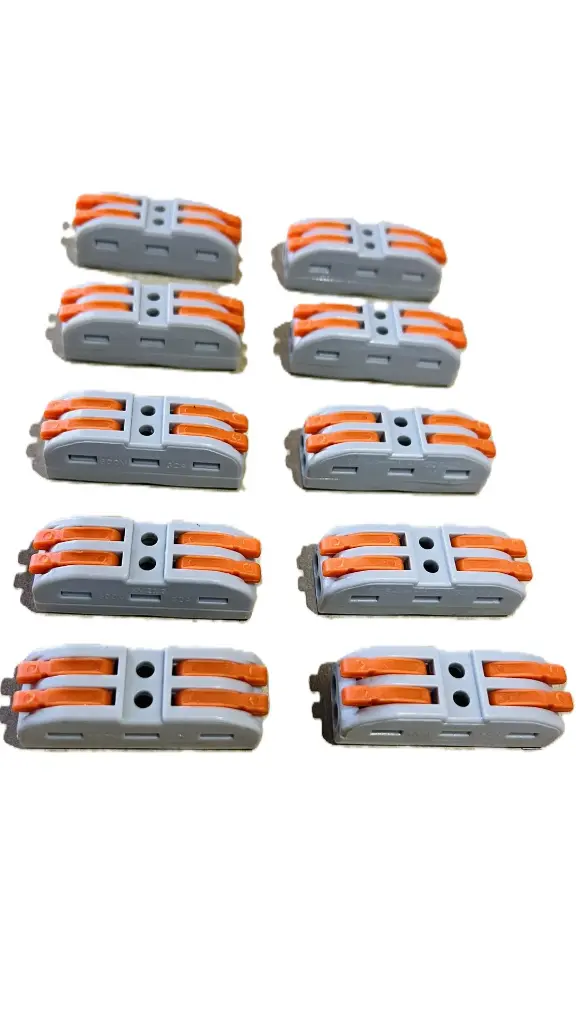

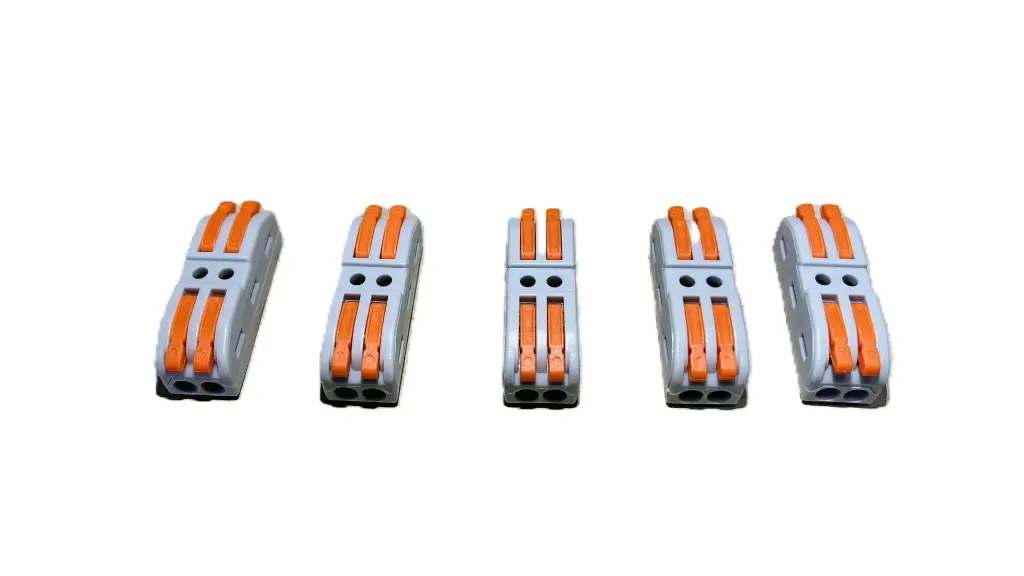

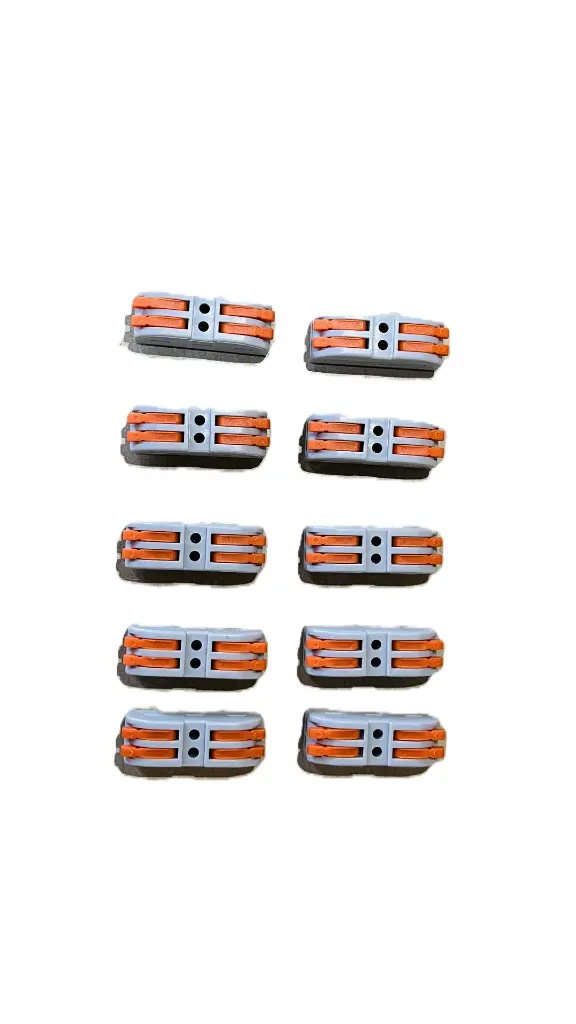

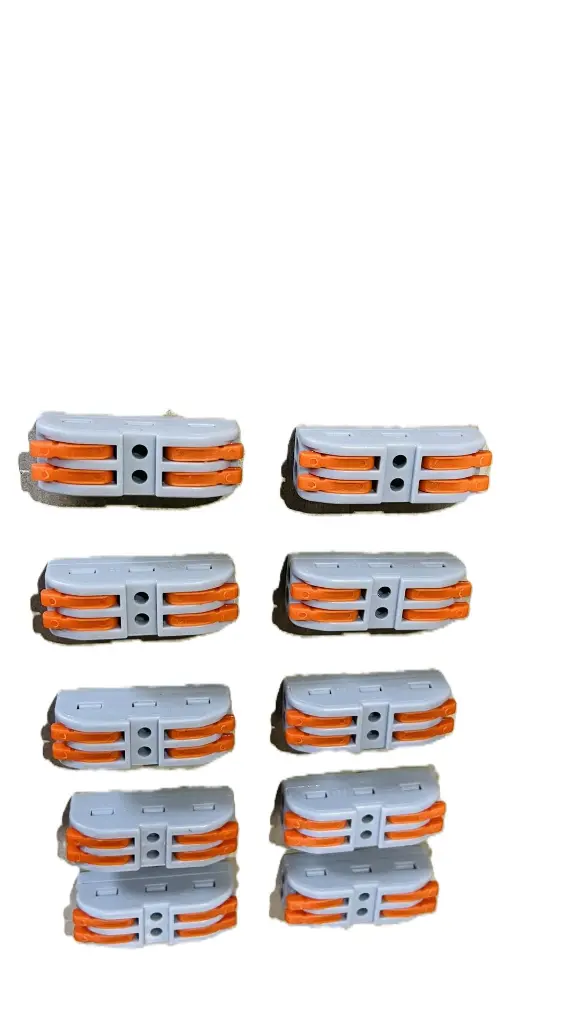

2-in-2 Lever Wire Connector

(0 review)

The 2-in-2 Lever Wire Connector is an advanced wiring solution designed to simplify electrical connections. With its tool-free lever mechanism, users can quickly connect or disconnect wires without hassle.

This connector is engineered for high conductivity, safety, and durability, making it ideal for both residential and industrial applications. Its compact design allows easy installation in tight spaces while ensuring a strong and secure connection.

Whether you're working on LED installations, control panels, or general wiring, this connector offers unmatched convenience and efficiency.

₹ 15.31 ₹ 15.31 (Tax excluded)

Add to cart Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us



Technical Specification Table

ParameterSpecification
Model2-in-2 Lever Connector
Connector TypeLever Operated Spring Clamp
Configuration2 Input – 2 Output (4 Conductors)
Number of Ports2 Ports
Rated Voltage250V AC / Up to 400V Max
Rated CurrentUp to 32A
Power RatingUp to 6–7 kW
Frequency50/60 Hz
Wire CompatibilitySolid, Stranded & Flexible Wires
Wire Size (Solid)0.08 – 4.0 mm²
Wire Size (Stranded)0.08 – 2.5 mm²
AWG Range28 – 12 AWG
Strip Length10 – 12 mm
Contact Resistance≤ 0.05 Ω
Insulation Resistance≥ 100 MΩ
Housing MaterialFlame Retardant Nylon / Polycarbonate
Conductor MaterialTin-Plated Copper
Spring MaterialStainless Steel
Operating Temperature-40°C to +85°C (up to 105°C variant)
Mounting TypeFree Hanging / Inline
Connection TypeTool-Free Lever Lock
ReusabilityYes (Multiple Use)
Dimensions4cm*1.3cm*1.5cm
ColorGrey Body with Orange Lever
Safety FeaturesFlame Retardant, Shock Resistant
ApplicationsHome Wiring, LED, Panels, Automation
